Print-management products
For Tungsten, Kofax, Equitrac and former Nuance solutions, now available through direct sales.
Also compatible with other print management applications.
In addition to our standard product range, we offer a separate print management product range specifically designed for authentication at MFPs: Besides a dedicated USB Product ID, these readers are also equipped with a special firmware that takes into account the specifics of MFP interfaces. After 17 years of being sold exclusively by Tungsten/Kofax under their brand name, we now offer this product range for direct sale and for use with various print management applications.
Readers you know – with wide compatibility
Rely on proven Tungsten/Kofax readers that are also compatible with many other print management solutions.
Better prices & product range
Only pay for what you need: Thanks to additional variants and modular extensions, you can now order the functions you need for your project more specifically.
Order conveniently online
You can order all standard reader variants and accessories in our online shop.
Easy to set up with intuitive software tools
With BALTECH ToolSuite, you can create configurations, test them, and roll them out to readers via various interfaces. Reader Maintainer remains available for legacy projects.
First-hand developer support
Our direct support covers everything from reading the card to formatting the output at the USB interface. Order custom configurations at a flat service fee.
Custom development
Whether you need specific features, branding, or customized hardware: We offer custom solutions at competitive prices thanks to 100% in-house development, design and manufacturing.

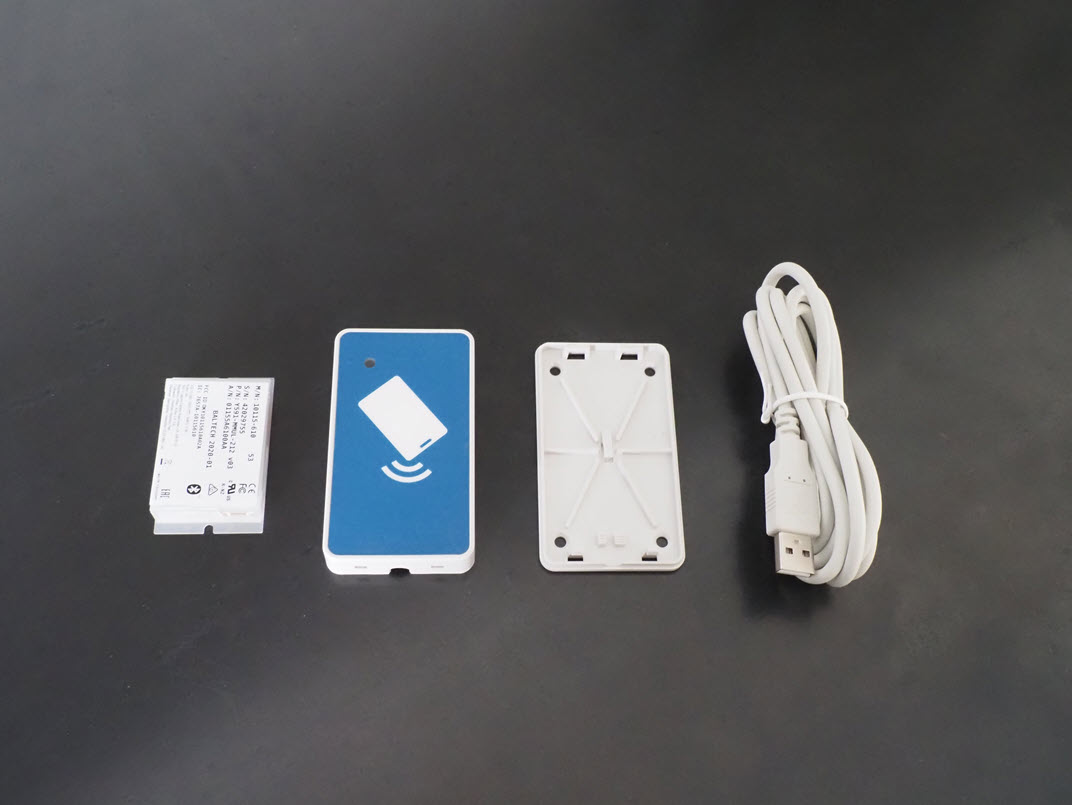

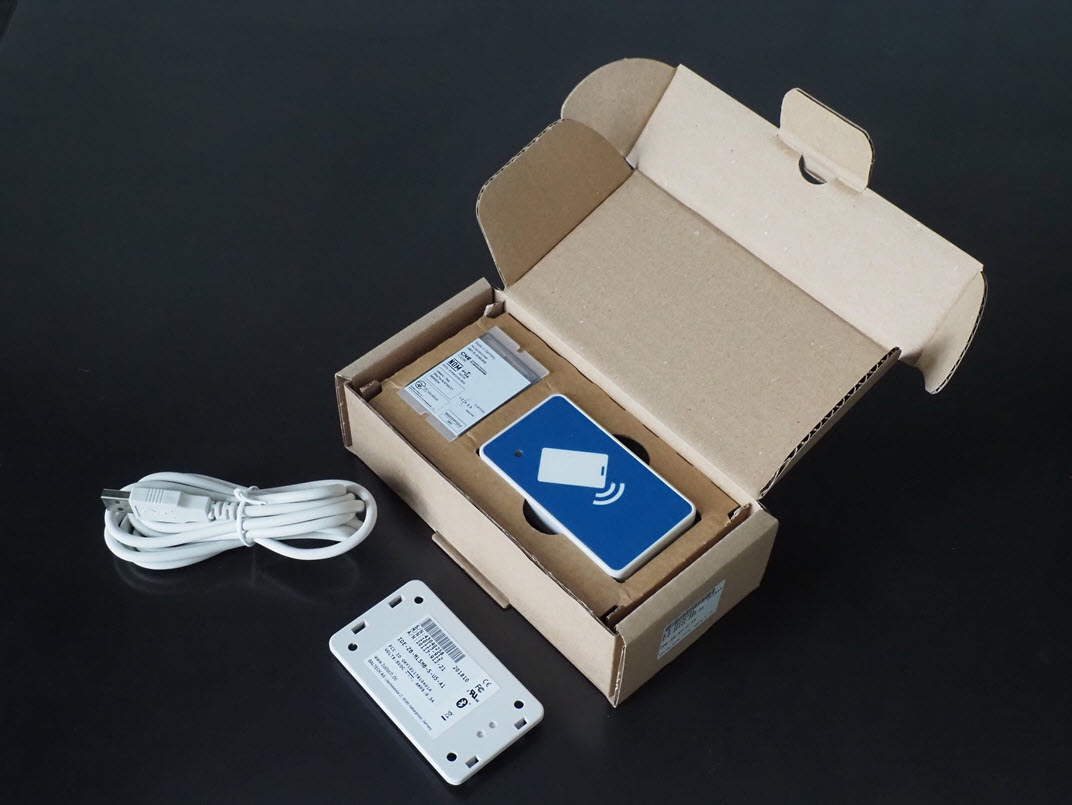

Micro Card Reader
RFID | NFC | Bluetooth® | Business Connect-compatible
RFID reader with USB connection. The module can be installed in an MFP pocket. With the snap-together BRICK housing also suitable for external installation.
Ordering options:
- Micro Card Reader Module: Reader module + individually orderable accessories

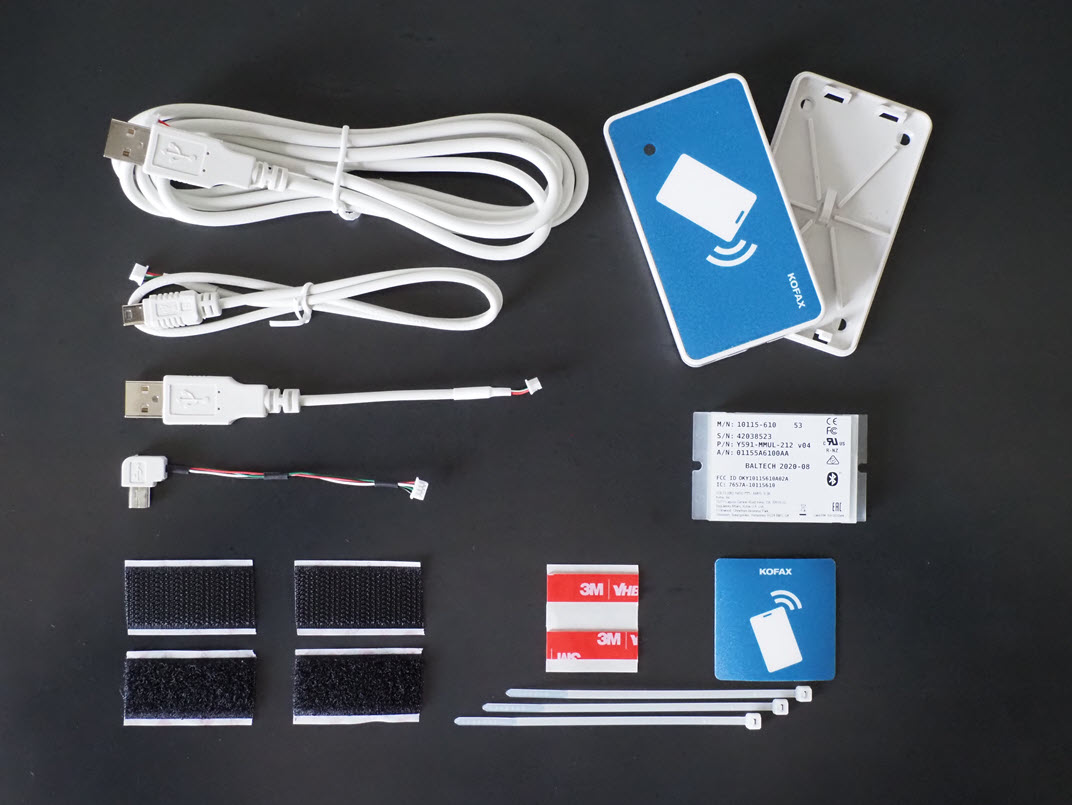

View in shop - Micro Card Reader SET: Reader module incl. full accessories package
View in shop
| Form factor | Embedded module: 57 × 35 × 9 mm, 11 g; with BRICK housing: 84 × 48 × 17 mm, 100 g; fixed cable 1.8 m |
|---|---|
| RFID read range | HF/NFC (13.56 MHz); optional: LF (125 kHz), Bluetooth Low Energy |
| Host interfaces | USB 2.0 full speed |
| Operating temperature | -40…-+60 °C (-25…+60°C for 1×117 product line) |
| MTBF | 200,000 h |

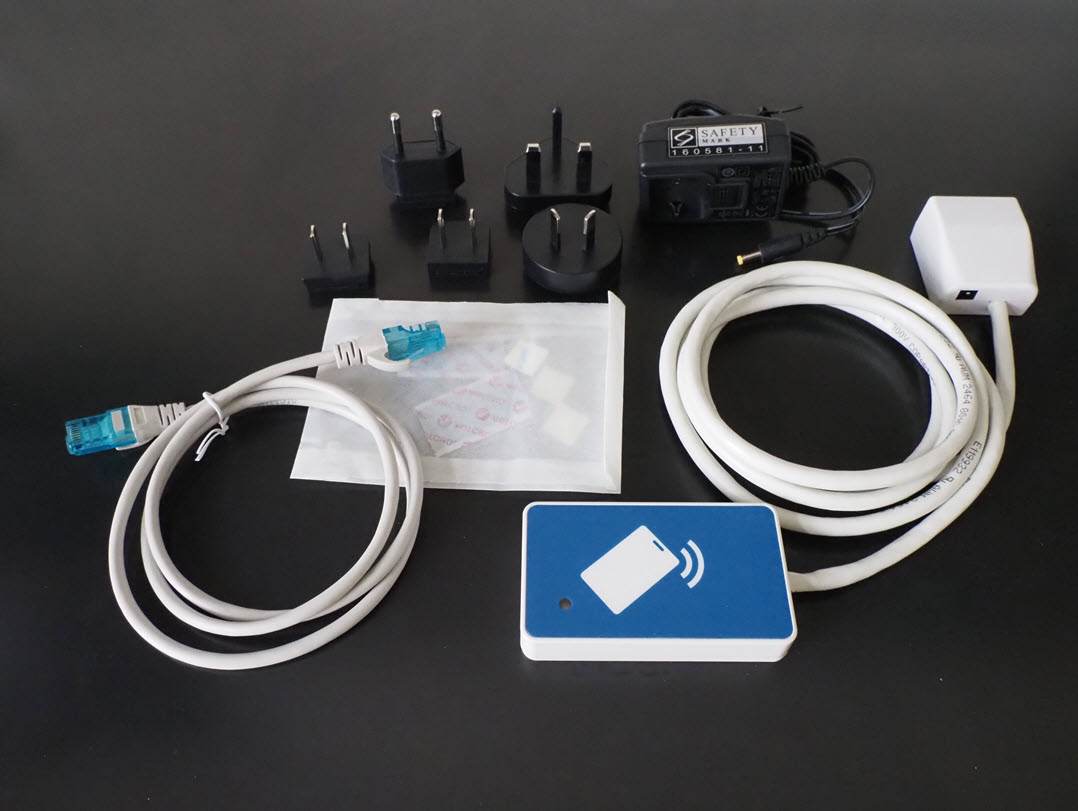

Ethernet Card Reader
RFID | NFC
RFID reader for Ethernet environments. Easy installation thanks to integrated 2-port switch. Power can be supplied via an external power adapter or by Power over Ethernet (PoE).
| Form factor | 85 × 48 × 17 mm, 150 g; fixed cable 1.8 m |
|---|---|
| RFID read range | HF/NFC (13.56 MHz); optional: LF (125 kHz) |
| Host interfaces | Ethernet 100 Mbit/s, integrated 2-port switch, PoE (IEEE 802.3af) |
| Operating temperature | 0…+40 °C |
| MTBF | 500.000 h |
ID Card Reader
(USB Gen 2)
RFID | NFC | Bluetooth® | Business Connect-compatible
The predecessor of the Micro Card Reader: Housed RFID reader with USB connection. Available with and without BusinessConnect compatibility.
| Form factor | 85 × 48 × 17 mm, 94–101 g (depending on variant); fixed cable 1.8 m |
|---|---|
| RFID read range | HF/NFC (13.56 MHz); optional: LF (125 kHz), Bluetooth Low Energy |
| Host interfaces | USB 2.0 full speed |
| Operating temperature | -20…+60 °C |
| MTBF | 500.000 h |
Data sheet: Product specifications – ID Card Reader USB Gen2
Software tools

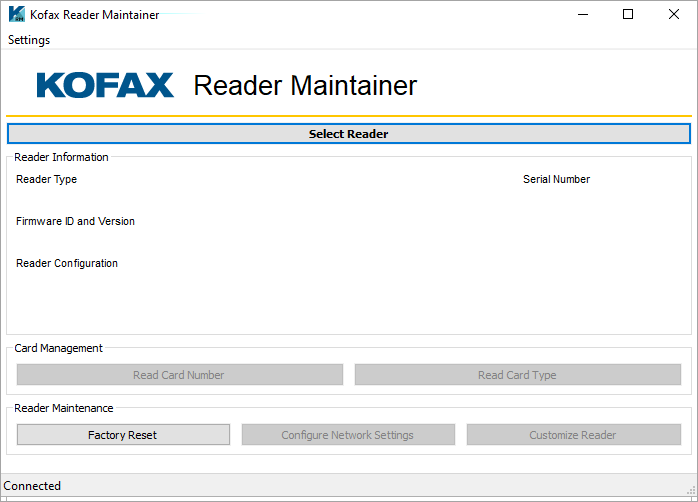

With ToolSuite, you can configure your print-management readers yourself — no expert knowledge required. Create and test configurations for various card technologies and a wide range of print-management software, and deploy them via multiple interfaces. For legacy projects, Reader Maintainer remains available for download.
Data sheets
ToolSuite data sheet
Reader Maintainer user guide
Installation files
in the download area
Accessories
The following accessories are available:

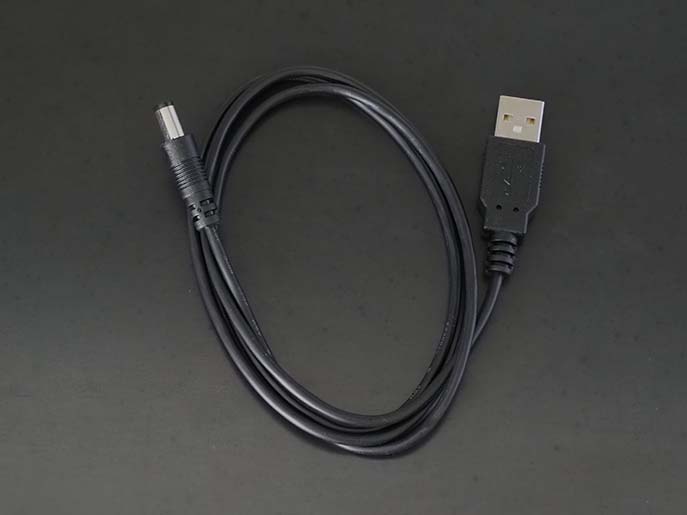

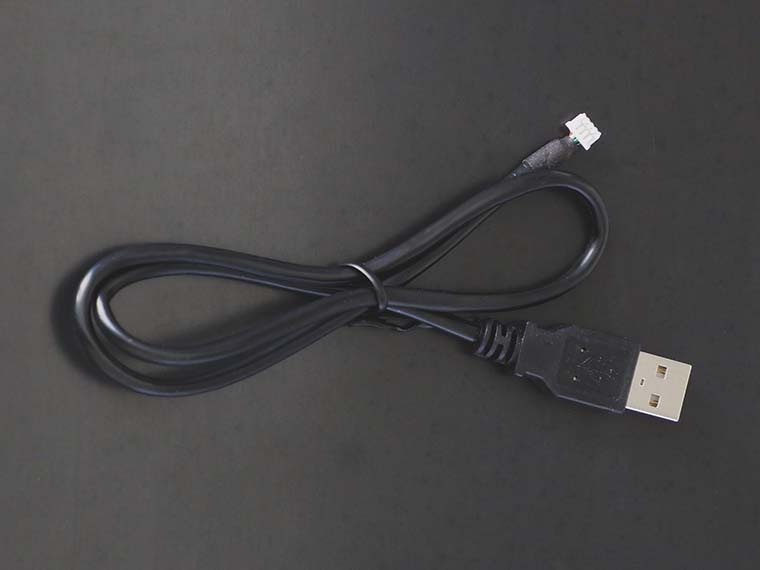

- Cables and power supply:View in shop
- Special function cards: View in shop

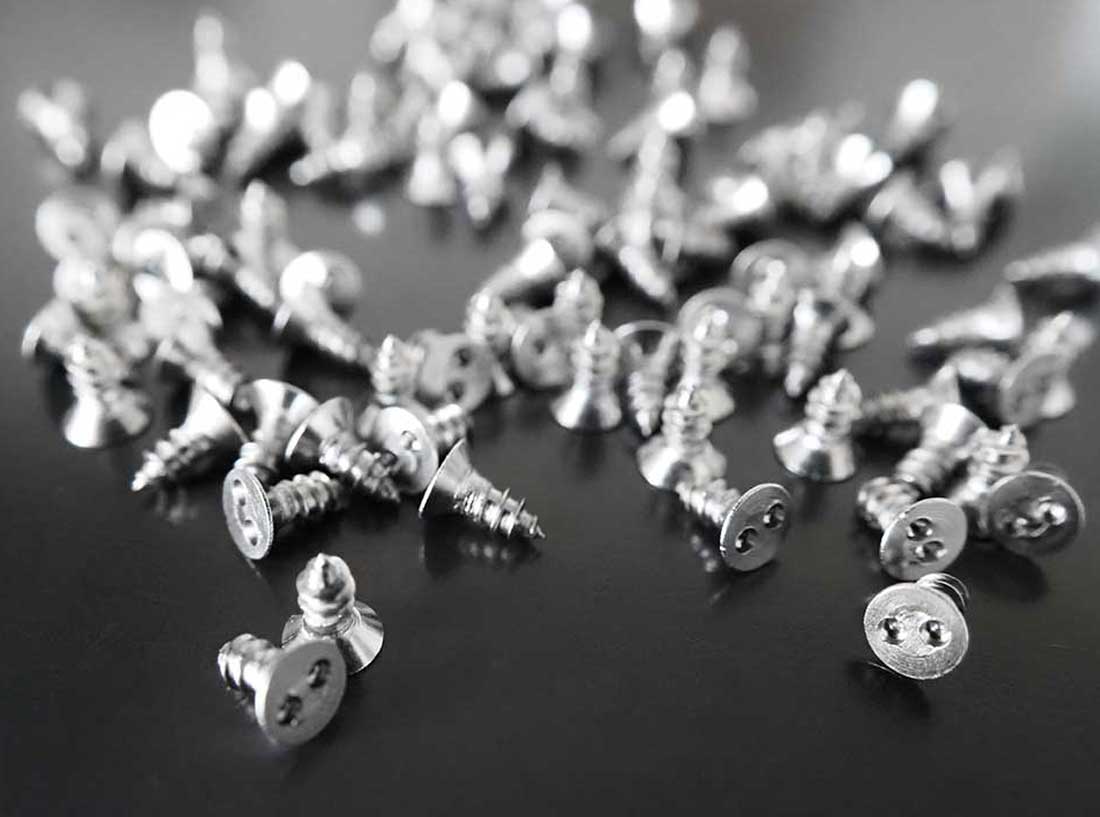

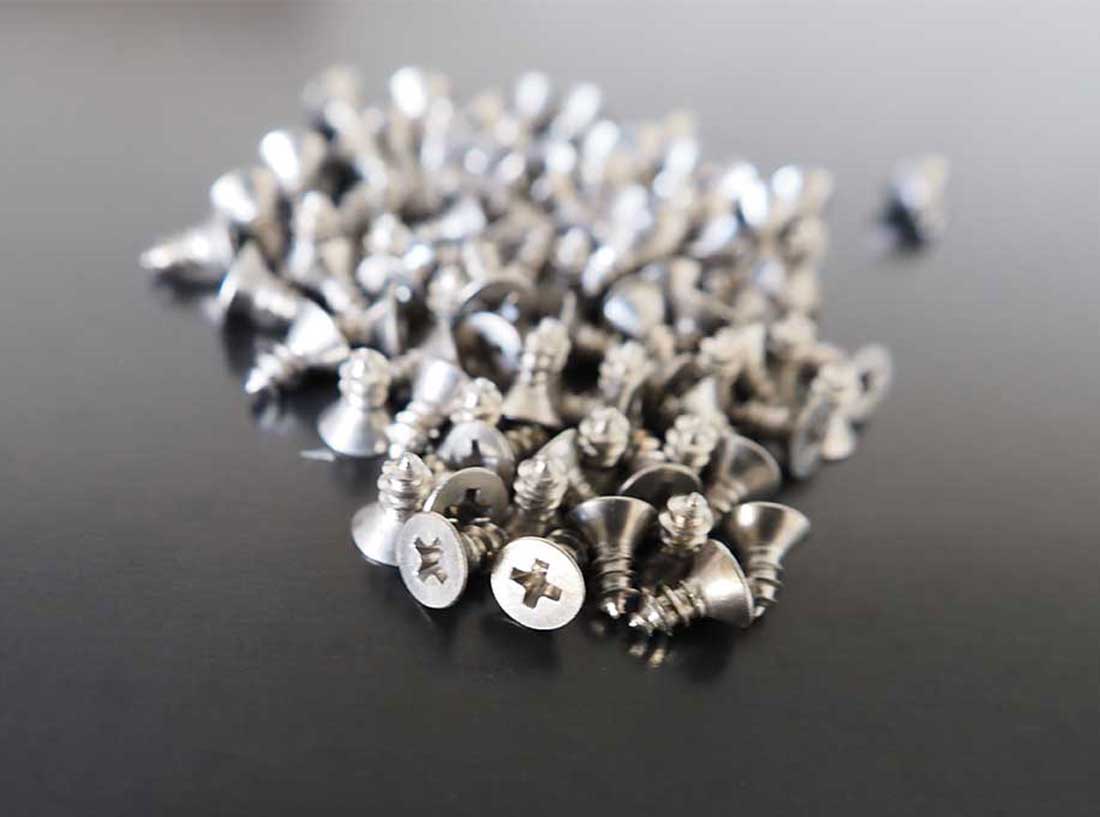

- Mounting and integration accessories: View in shop
Data sheets
price list
Custom development
While our standard products are suitable for many different application scenarios, there are also cases where a custom solution makes sense:
Special functional requirements
We offer firmware adaptations, e.g. to support a proprietary host protocol, or hardware adaptations, e.g. for specific installation environments. Thanks to in-house development, design, and production we can offer you the highest quality at competitive prices.
Cost optimization
For orders of 100 readers or more, we offer cost-optimized versions of our standard products that contain only the components you need. For higher order volumes, we also offer fully customized designs: In this case, we can optimize the feature set even further – not only by removing features, but also by adding additional ones as needed. Mechanical properties can be customized as well: You can e.g. have the reader’s shape tailored to facilitate the next process steps so you can minimize your production costs.
All-round service
In addition to developing your solution, we also take care of international certifications, e.g. CE, FCC, ATEX, or UL, but also branding of product and packaging as well as worldwide logistics.
