ID-engine Z Module
€49,00 – €104,00 excl. VAT
- Powerful read/write module, versatile integration, e.g. in vending machines, industrial PCs or terminals.
- Ideal antenna size to reliably read cards as well as transponders and key fobs at a comfortable range.
- Various RFID interface variants available.
- All variants with USB 2.0 host interface. Optional additional UART interface with RS-232 level (+/-12V) or CMOS level (0/5V).
- Various USB cables and an RS-232 cable are available as accessories (see below).
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |

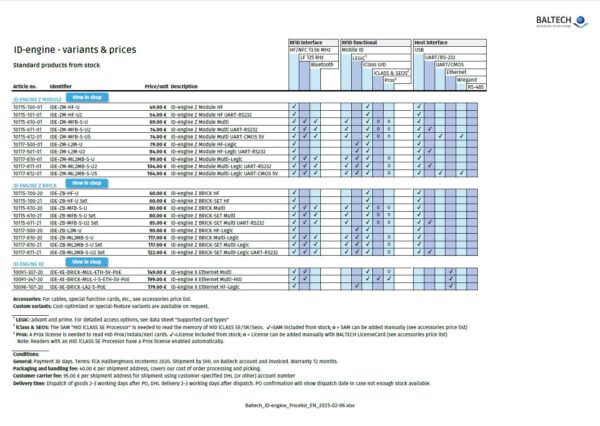

| Product variants: | 10115-100-01 IDE-ZM-HF-U, 10115-101-01 IDE-ZM-HF-U2, 10115-610-01 IDE-ZM-MFB-S-U, 10115-611-01 IDE-ZM-MFB-S-U2, 10115-612-01 IDE-ZM-MFB-S-U5, 10117-500-01 IDE-ZM-L2M-U, 10117-501-01 IDE-ZM-L2M-U2, 10117-810-01 IDE-ZM-ML2MB-S-U, 10117-811-01 IDE-ZM-ML2MB-S-U2, 10117-812-01 IDE-ZM-ML2MB-S-U5 |
